Home › Projects › RINAC, Mumbai

S1 · Cement-treated gravel

RINAC, Mumbai

RINAC India · Mumbai, Maharashtra · Cold-chain logistics · 2025

Cold-storage truck yard rebuilt in cement-treated gravel (6% cement) in OC-LW 40 during a shutdown window; light traffic at three days, trucks at seven once the 7-day cubes reach 2 MPa; in daily use under reefer trucks since. The reference site for S1.

Use case: Cold-storage truck yard. Saving per m², indicative: ₹93–130/sq ft (₹1,000–1,400/m²) vs an IRC:58 concrete yard.

About S1  Estimate a similar site

RINAC, Mumbai: OC-LW 40 laid across the yard

OC-LW 40 laid across the yard

From the site

Before: the rubble yard
Before: the rubble yard
Before: the bare yard beside the warehouse
Before: the bare yard beside the warehouse
Before: rubble ground, with the new canopy footings already cast
Before: rubble ground, with the new canopy footings already cast
Aggregate for the base, stockpiled on site
Aggregate for the base, stockpiled on site
Geotextile laid on the ground before the base
Geotextile laid on the ground before the base
Rolling the base
Rolling the base
The compacted base, ready for the grid
The compacted base, ready for the grid
The first panels set out to a string line
The first panels set out to a string line

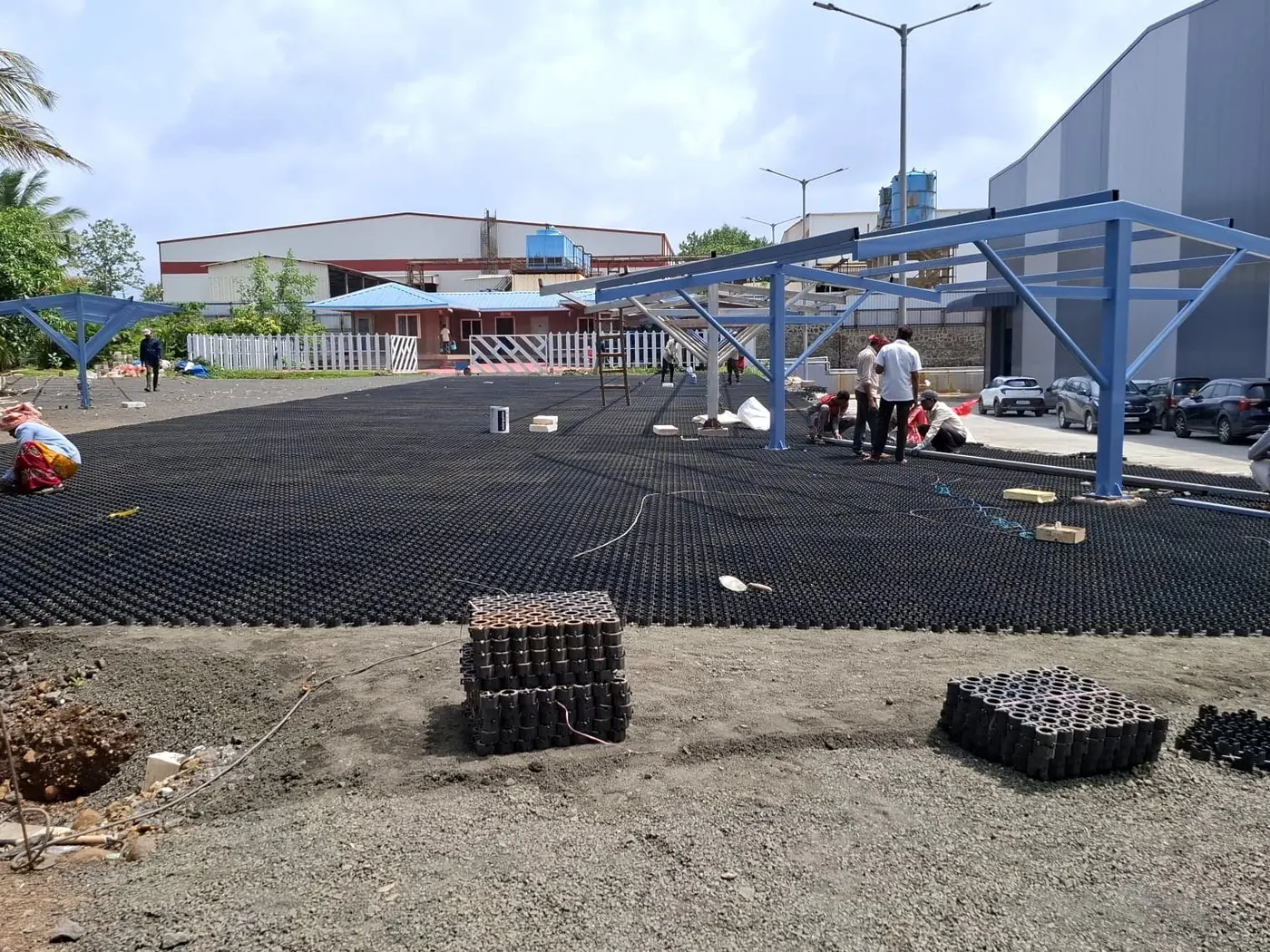

Panels going down across the yard, stacks ready at the edge
Panels going down across the yard, stacks ready at the edge
OC-LW 40 on the prepared base, before the cement-treated gravel
OC-LW 40 on the prepared base, before the cement-treated gravel
The OC-LW 40 cells, before the fill
The OC-LW 40 cells, before the fill
Gravel for the fill, stockpiled at the laid grid
Gravel for the fill, stockpiled at the laid grid
Filling the cells with the cement-treated gravel
Filling the cells with the cement-treated gravel
The fill advancing across the grid, finished to a broomed surface
The fill advancing across the grid, finished to a broomed surface
The broom-finished surface under the canopy
The broom-finished surface under the canopy
The finished yard
The finished yard
