Pallets and plywood-substitute boards made from multilayer plastic waste
MLP boards are heat-pressed from multilayered and single-use plastic waste, such as tetra packs, aluminium-lined film and chip packets, with no adhesive, no formaldehyde and no glue lines to delaminate. GridMats Pallets are fabricated from individually replaceable MLP members, so a damaged slat is replaced and the pallet stays in service; there is no timber, so no splinters, protruding nails or wood dust. The same boards replace plywood in shuttering, cabins, partitions, toilets and furniture: see MLP boards.
Ask on WhatsApp (opens in a new tab) Contact sales Flier (PDF) (opens in a new tab)

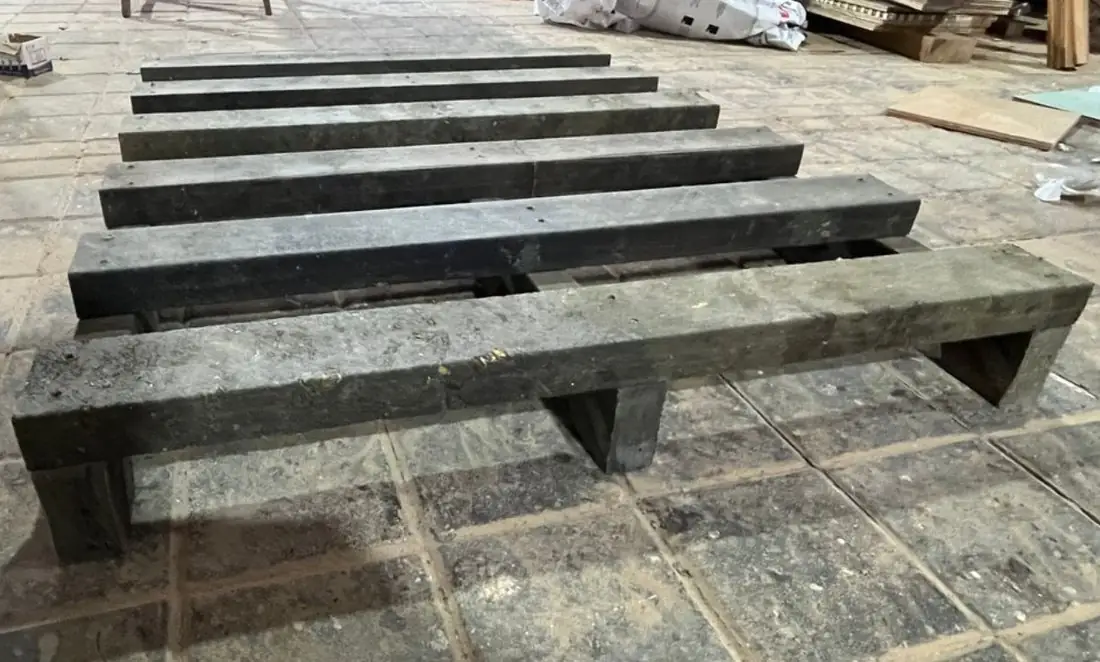

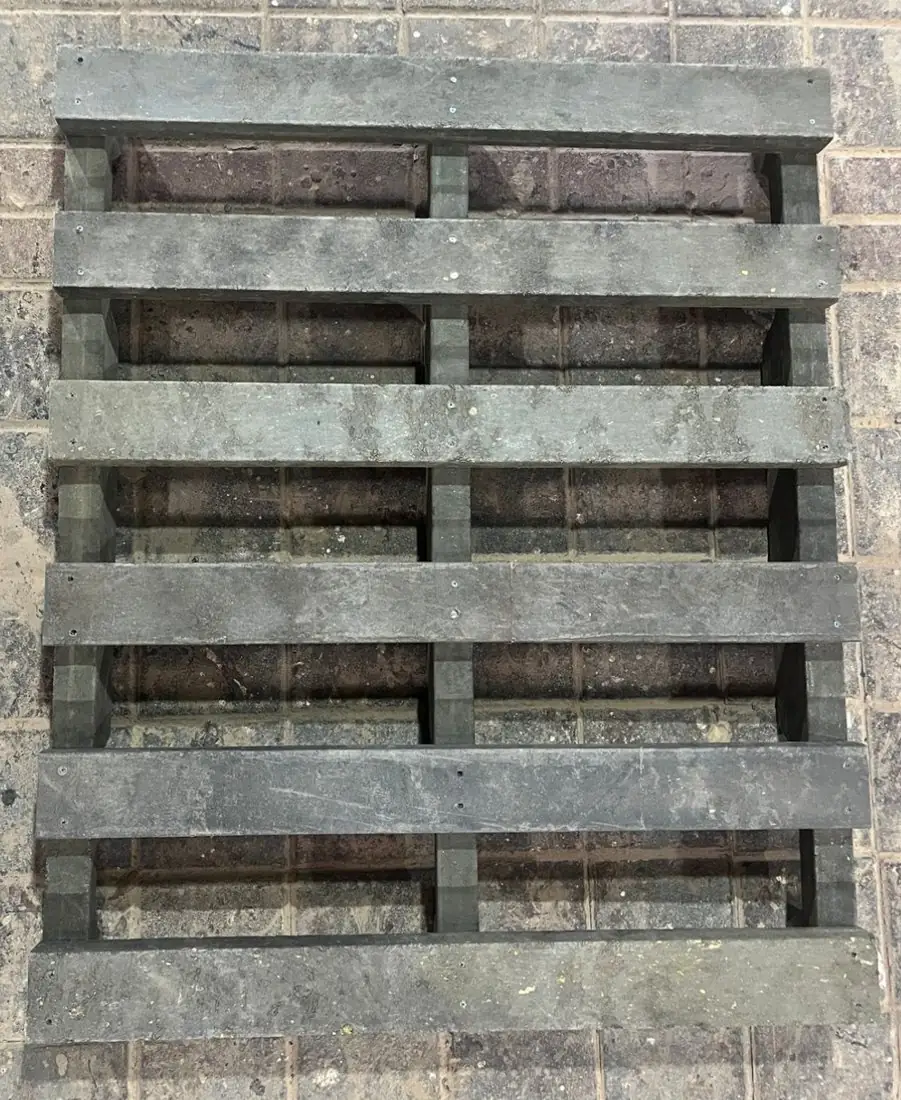

A GridMats fabricated pallet in MLP members
In under 20 seconds
Where it is used

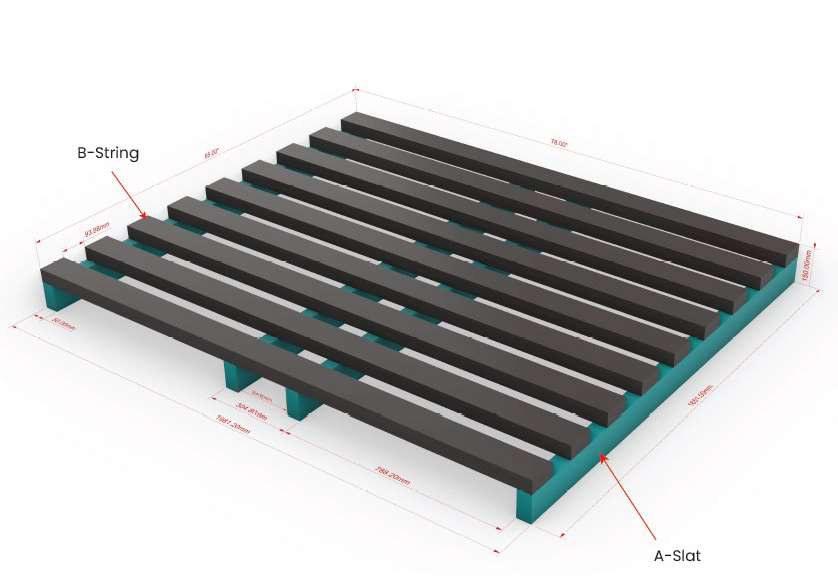

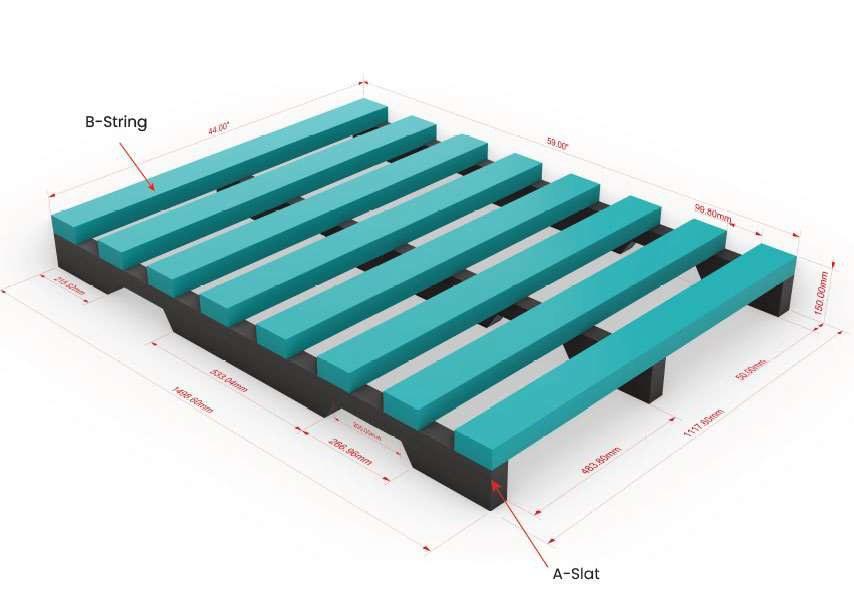

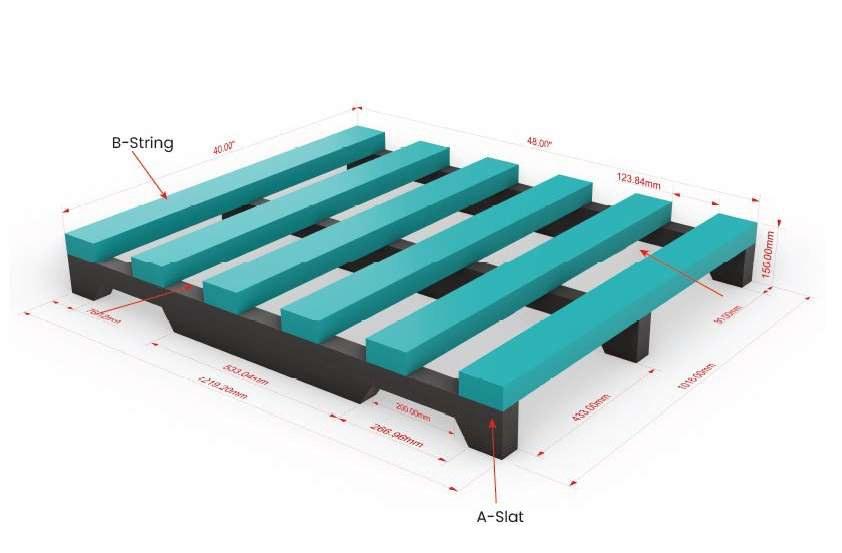

Pallets for export and logistics. Three footprints, 48 × 40, 59 × 44 and 78 × 65; members replaced one at a time.
Crates and packaging. Boards and lumber for crate panels and pallet assembly lines.

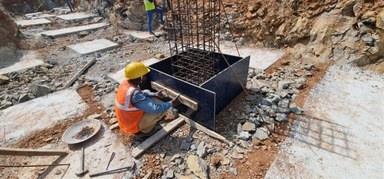

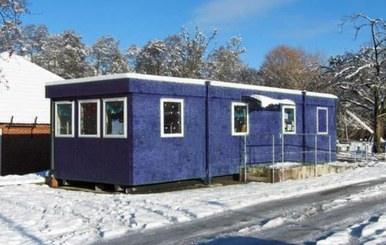

Construction. Shuttering (20+ reuses on the data sheet), cabins, partitions, toilets, school furniture and block pallets: MLP boards.
Traceable fleets. An optional QR, RFID or IoT identifier per pallet, linked to your WMS, TMS or ERP.
Specifications
| Boards | 4, 6, 8, 12 and 16 mm; nominal 4 × 8 ft panel 11, 16, 21, 32 and 43 kg; see MLP boards |
|---|---|
| Density | 0.9 g/cm³, about 28% above plywood |
| Strength | Compressive 18.7 MPa (ASTM D695); tensile 7.41 / 5.10 MPa across / along the grain (ASTM D638); modulus of rupture 9.17 / 8.39 MPa (IS:1734); shear 3.2 MPa (ASTM D143) |
| Water and pests | Moisture 0.17% (ASTM D7191); no bulge after a 24-hour soak; no shrinking or swelling; termite- and UV-resistant |
| Pallets | 48 × 40, 59 × 44 and 78 × 65; 48, 66 and 120 kg; finite-element safety factor 15 under vertical load (simulation) |
| Pallet tests | Burning rate 0.16 mm/s (ASTM D635); heat 2 h at 205 °C (ASTM D2485); acid absorption 1.03% |
| Quality | ISO 9001, ISO 14001 and ISO 45001; three plants in India |
Samples and indicative costing on request. The board figures are from Indian test houses; the pallet figures are simulation, so load, stacking and impact are for your lab to establish. Figures from GridMats product data; confirm them for your project.
How to evaluate
- Tell us the footprint, load and handling line, or the board format and thickness.
- We send samples in the formats and thicknesses you nominate, with indicative costing.
- Your lab establishes load, stacking, impact, humidity and fastener performance against your specification.
- Supply by purchase order, with optional QR or RFID tracking.
