Engineering and resources
Test data, data sheets, cross-sections, specification clauses and one-page installation sheets for GridMats. New to the words engineers use? See Terms we use, a plain-English glossary.
Test data
Laboratory compression tests on the panel. OC-HD 40: 170 t/m² empty (latest test report); filled, about 320 t/m² with cold asphalt and 3,200–4,000 t/m² with M25 concrete at 5 days (Stedrant, 2021). OC-LW 40: 105 / 200 t/m² in-house; third-party test due Q4 2026. Panel tests compare panels; a pavement's capacity comes from the base designed for its traffic and soil. RoHS compliant and polypropylene confirmed by FTIR (NABL-accredited lab, 2023); melting-point report on request.

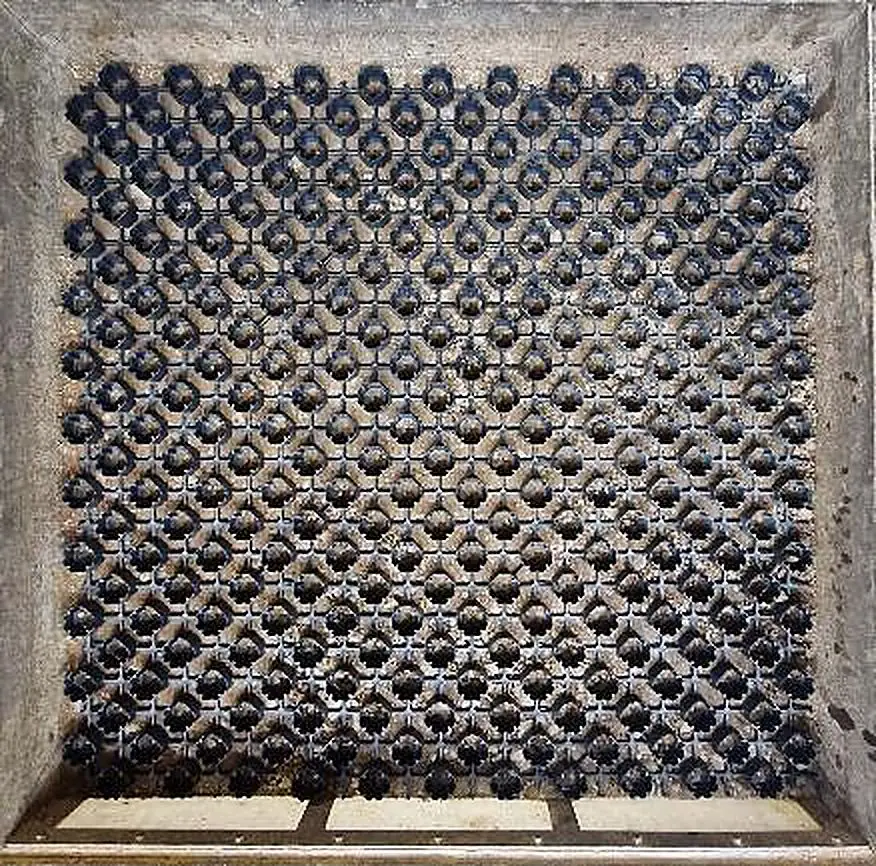

IIT Hyderabad research
Modulus improvement factor 2.00 at CBR 5% and 1.63 at CBR 10%, from large-scale tank tests with OC-LW 40 at the GSB/WMM interface (report, October 2025). Presented at TGS2026, IISc Bengaluru, for publication by Springer.
The design engine
Send CBR, load, traffic, rainfall, terrain and finish; our engineers return every permanent system designed and priced, with the conventional comparison.
Installation and training
A one-page installation sheet for each system is open to all, in the library below. The installation guide comes by email on request; the SOP, the hold-point checklists and the method statement for your site come with your order, and we train your contractor’s execution team: on site for up to 3 days for orders of 2,000 m² or more, once you confirm in writing that the site is ready; online at no extra cost below that. On-site training is built into the product rate on your quote, so there is one PO with no separate service order; online training is at no extra cost.
Drainage and terrain
GridMats gravel and grass designs are customised to the geography, rainfall intensity and topography of the site: sub-surface drains sized to four rainfall classes, cross-sections for flat, graded, steep and embankment sites. On the permeable systems the rain is drained below the surface.
Certificates
Resource library
Everything a consultant, contractor or buyer asks for, on par with the global makers: fliers, one-page installation sheets, data sheets, cross-sections, tender clauses, certificates and research. Fliers, installation sheets, certificates and the film are open; the technical and partner documents ask for your name, company and email once per visit. Items marked “Request” come by email the same working day.
The technical documents: tell us who you are, once
Name, company and email. Everything opens for the rest of this visit, and we let you know when a document is revised.
Fliers
- S1 Cement-treated gravel
Flier · 1 pageDownload (opens in a new tab) - S2 Stone chip, gravel, pebble
Flier · 1 pageDownload (opens in a new tab) - S3 Grass and soil
Flier · 1 pageDownload (opens in a new tab) - S4 Honeycomb-finish concrete
Flier · 1 pageDownload (opens in a new tab) - S5 Grid in the base under asphalt
Flier · 1 pageDownload (opens in a new tab) - S6 Temporary roads and surfaces
Flier · 1 pageDownload (opens in a new tab) - Plant roads and truck yards
Application flierDownload (opens in a new tab) - Solar and wind parks
Application flierDownload (opens in a new tab) - GridMats Solar Walkway
Flier, pilot stageDownload (opens in a new tab) - Pallets and MLP boards
Data sheet flierDownload (opens in a new tab)
Product data
- Product data sheets
OC-HD 40, OC-LW 40, GP-30, GP-20, TC mats and accessories · 7 pages - Research and test summary
Load tests and the IIT Hyderabad programme · 2 pages - Full test reports
Bureau Veritas, Stedrant, IIT Hyderabad; for your consultant
Design and specification
- Typical cross-sections, S1 to S6
Layer schedules and the base table · PDF; DWG on request - Specification clauses and BoQ items
For tenders · PDF - Specification clauses, editable
Word file to paste into a tender; sent by email - First-cut calculator
Six questions, instant resultOpen
Installation and quality
- Installation at a glance: S1 cement-treated gravel
One page · the steps, what you need, when it opensDownload (opens in a new tab) - Installation at a glance: S2 stone chip
One pageDownload (opens in a new tab) - Installation at a glance: S3 grass and soil
One pageDownload (opens in a new tab) - Installation at a glance: S4 honeycomb-finish concrete
One pageDownload (opens in a new tab) - Installation at a glance: S5 grid under asphalt
One pageDownload (opens in a new tab) - Installation at a glance: S6 temporary roads
One pageDownload (opens in a new tab) - Gravel road, bare ground to traffic
Video, 75 sWatch (opens in a new tab) - Installation guide, by email
Sequence, tests and aftercare for your contractor. Ask and we email it to you. - SOP, hold-point checklists and training
The SOP, the checklists and the method statement for your site; training for your contractor’s team on site for up to 3 days for orders of 2,000 m² or more, once the site is confirmed ready in writing, built into the product rate (one PO); online below that, at no extra costWith your order
Certificates
- Certificates pack

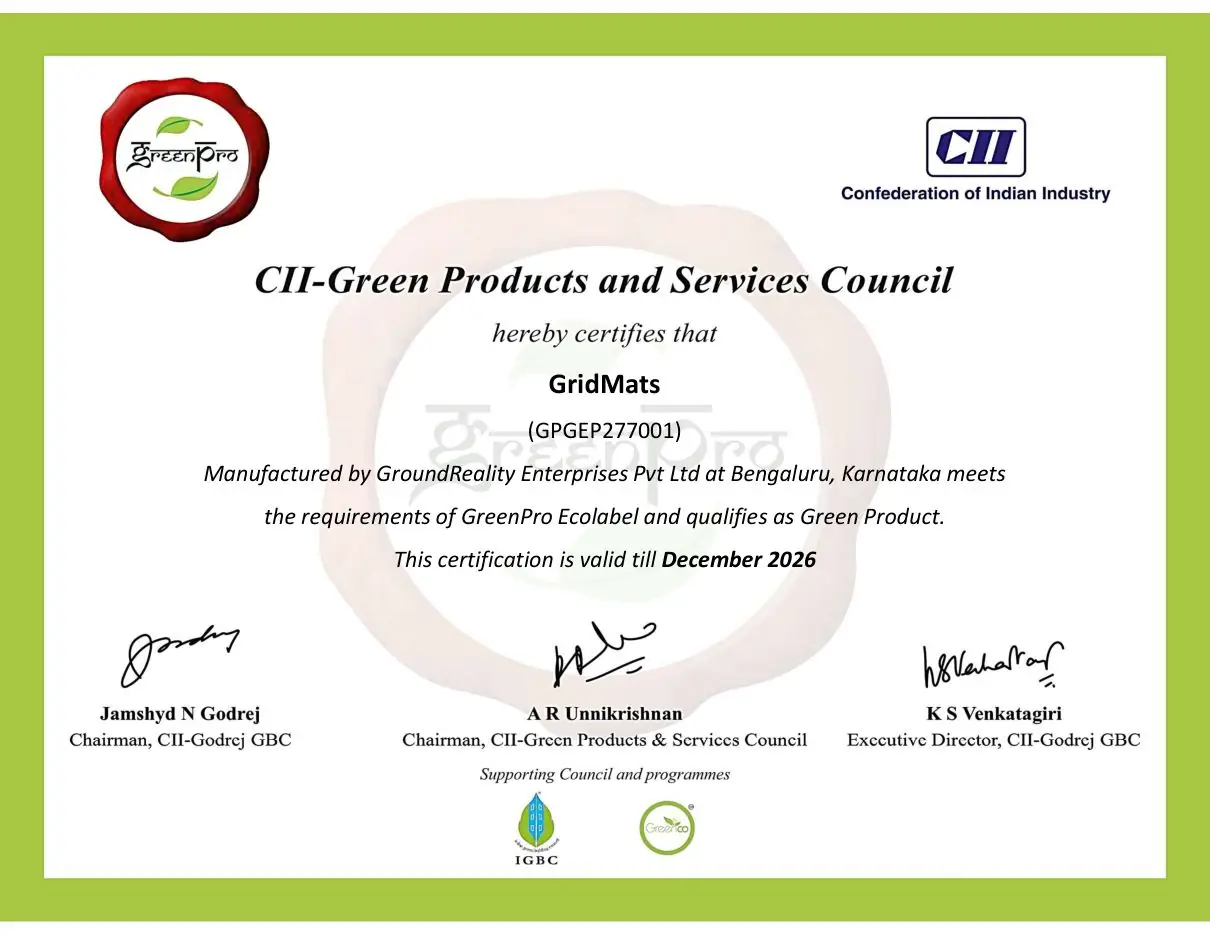

GreenPro, patent, PCT and the SDG 9 award · PDF, 4 pagesDownload (opens in a new tab) - GreenPro certificate

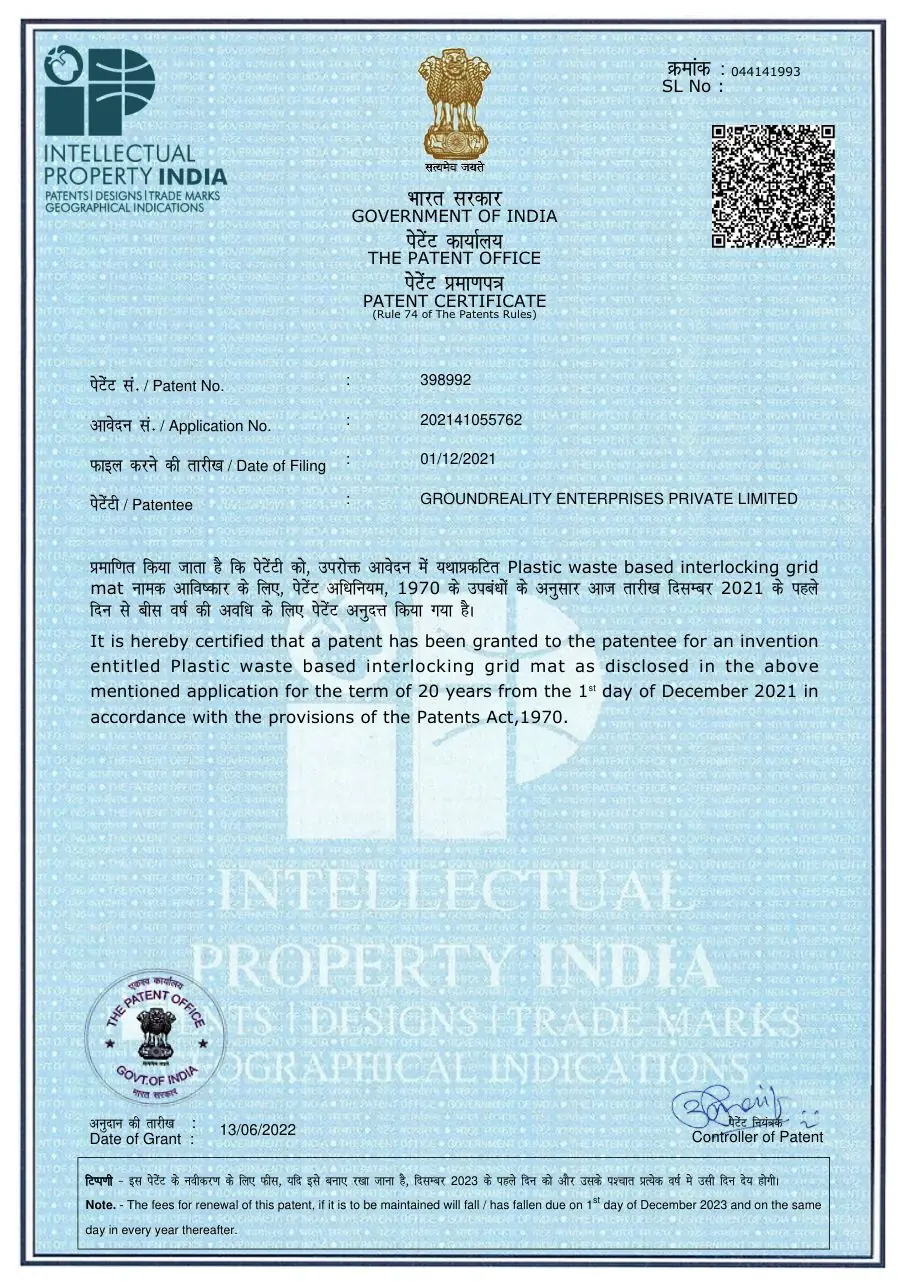

CII, GPGEP277001Download (opens in a new tab) - Patent certificate
Indian Patent 398992, in force from 1 Dec 2021Download (opens in a new tab) - PCT publication
WO/2023/100191 on WIPO PATENTSCOPEOpen (opens in a new tab) - Adani Green Talks 2025
SDG 9 award certificateDownload (opens in a new tab)
Sustainability
- Green-building contribution note
IGBC, GRIHA and LEED v4.1 · 2 pages - Recycled-content declaration
Signed, per supply
Partners
- International partner programme
PDF - India partner programme
PDF - Partner checklist
PDF - Mutual NDA
PDF
Watch
What would your road or yard cost on GridMats?
An indicative estimate in about a minute, free. Our engineers follow with the design and the bill of quantities against your conventional section; the method statement your contractor will follow comes with your order.
