32 sites across 12 states since 2019

References by system: who, where, what industry, what the surface does for them, and what it saved against the section they would otherwise have built.

Case studies

S1 RINAC, Mumbai
Cold-chain logistics · Cold-storage truck yard

S2 Reliance Industries, Rann of Kutch
Petrochemicals and energy · Access road on saline flats

S2 Toyo Engineering, Bharuch
Engineering and construction · Plant entrance road

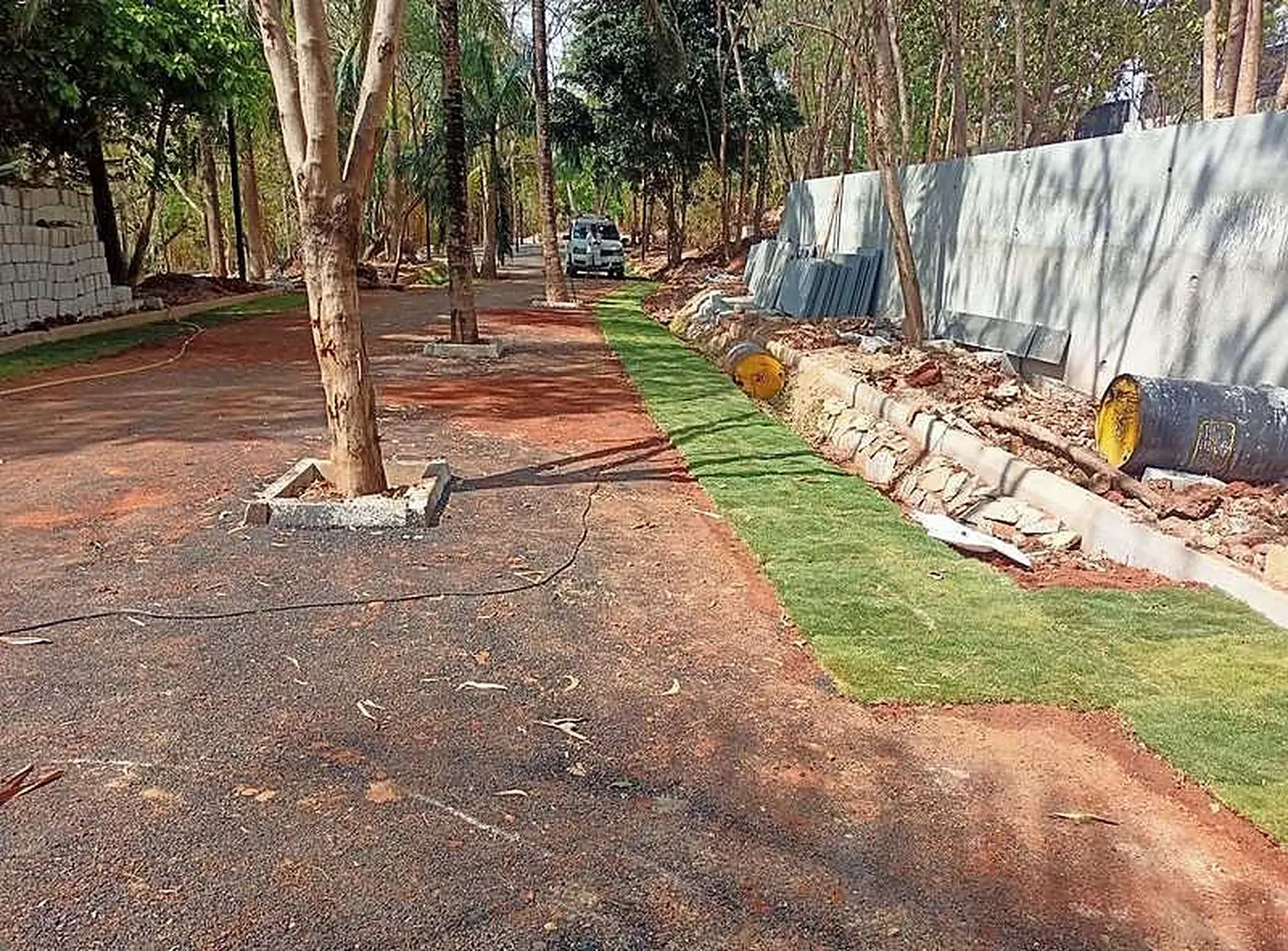

S3 Svamitva Floresta, Bengaluru
Residential township · Grass roads in a plotted layout

S3 Waters India, Bengaluru
Life-science instruments campus · Amphitheatre and event lawn

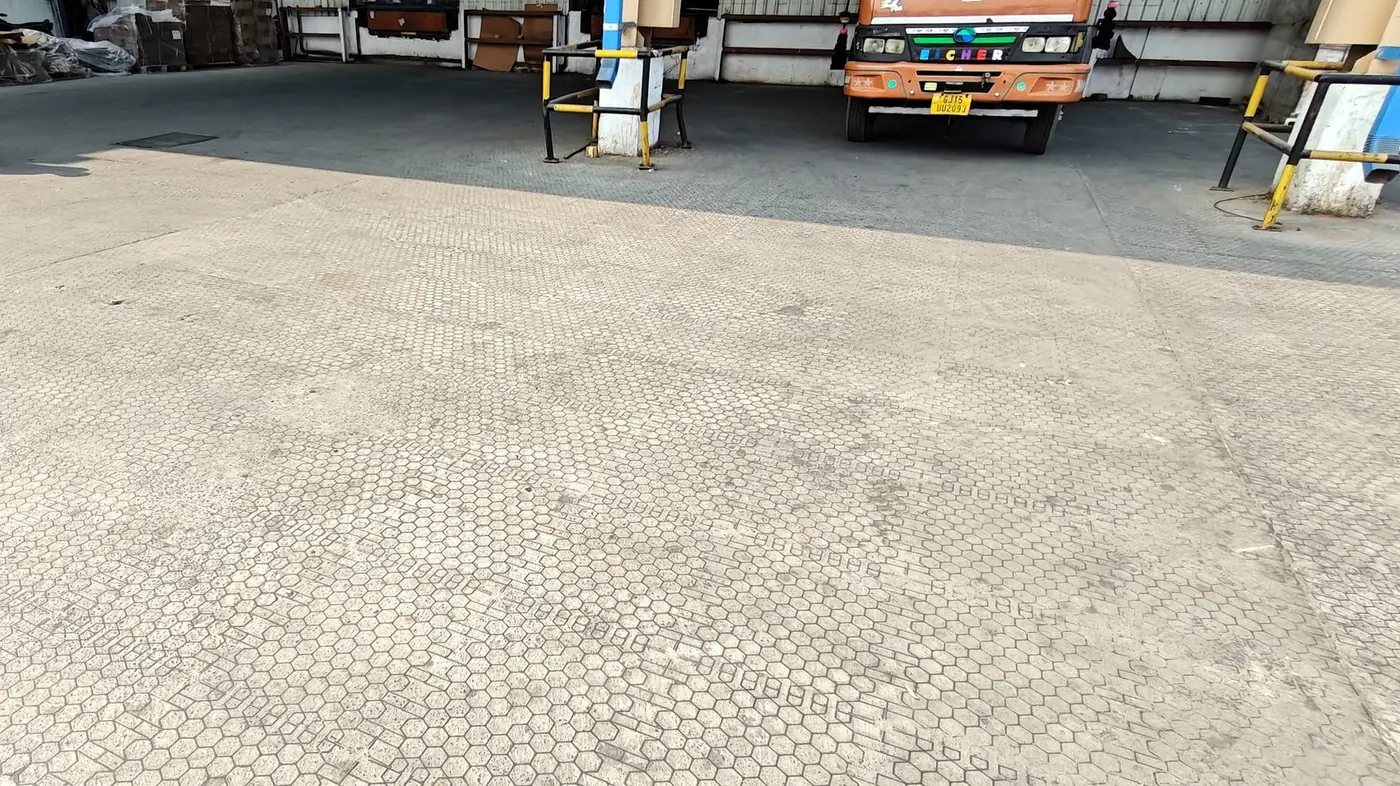

S4 PGP Glass, Gujarat
Glass manufacturing · Plant roads under 40-tonne trucks

S4 GMR Hyderabad Airport
Airport · Service corridor and parking

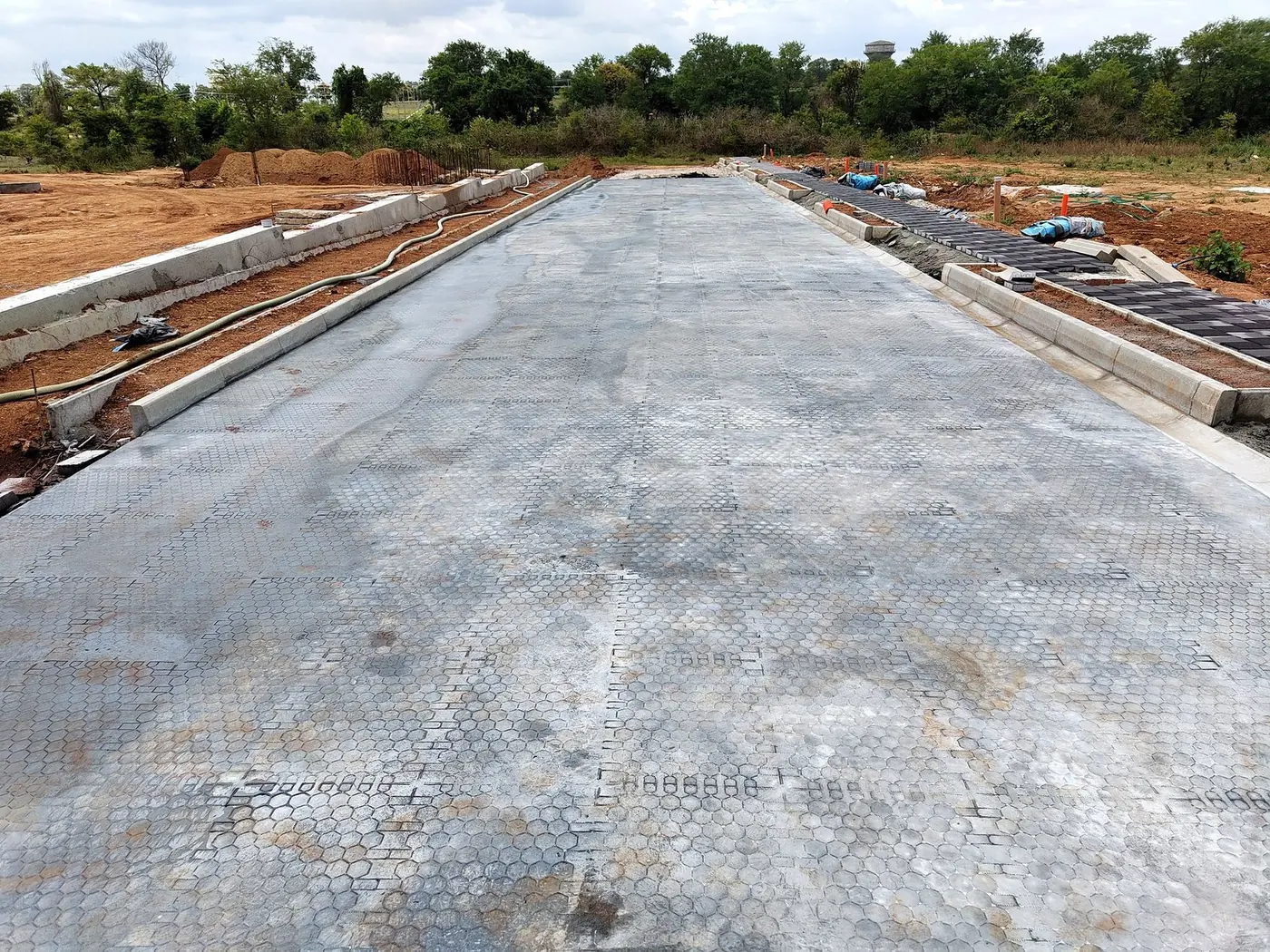

S4 Nest Ira, Devanahalli
Residential township · Township roads

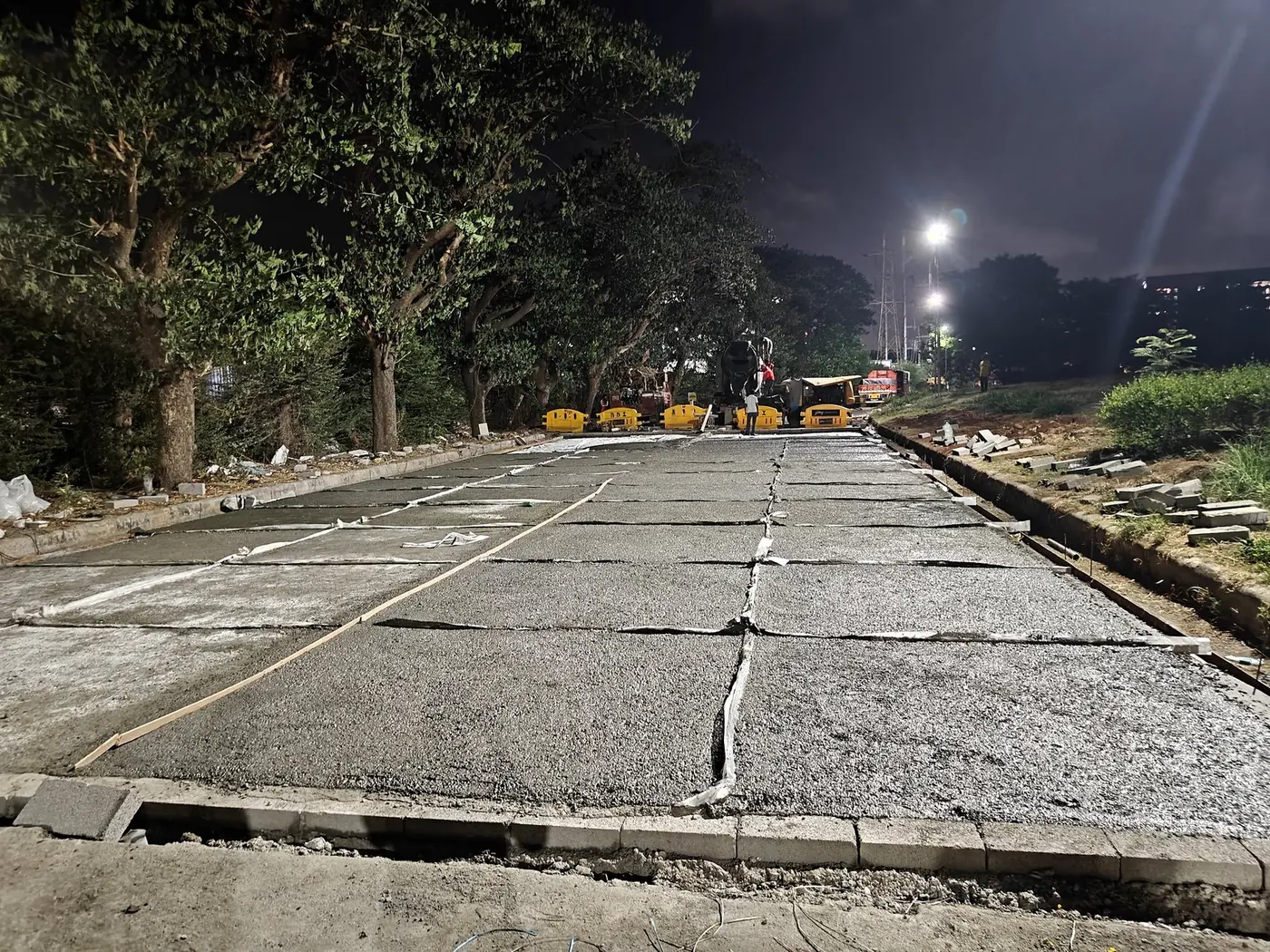

S4 Godrej, Vikhroli, Mumbai
Industrial campus · Honeycomb-finish campus road

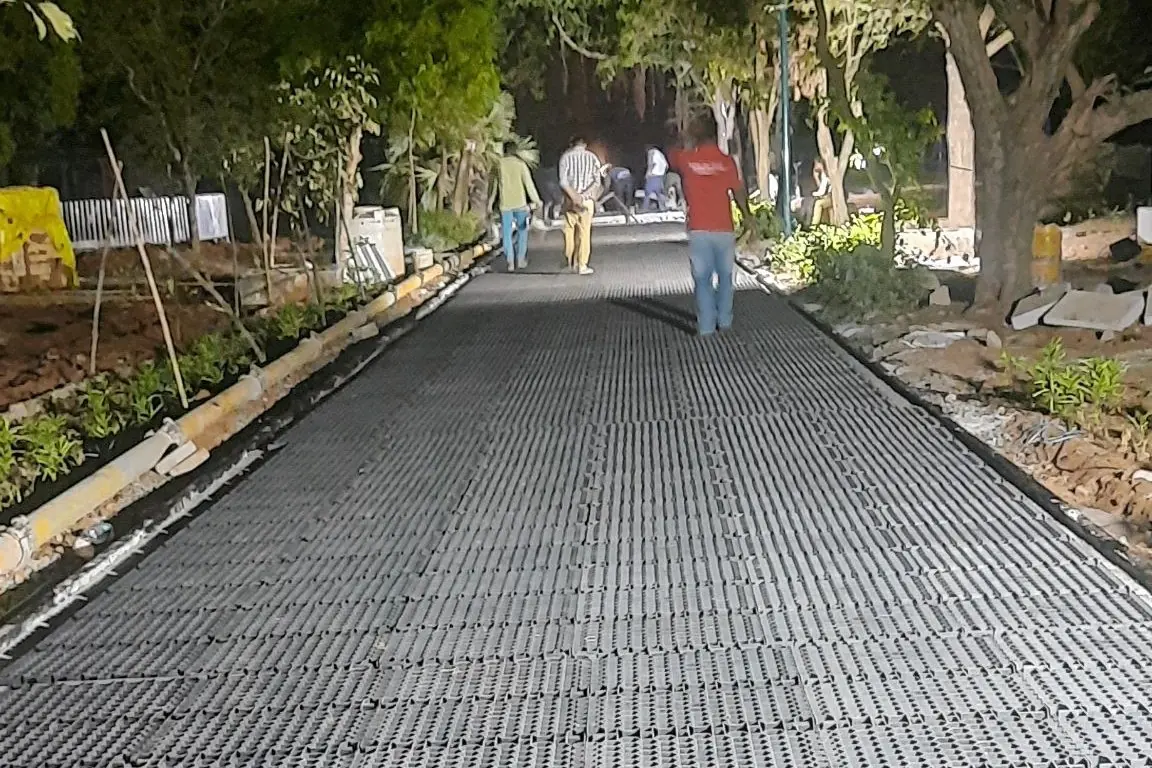

S4 Aditya Birla, National Park Guindy, Chennai
Manufacturing · Honeycomb-finish road, National Park, Guindy

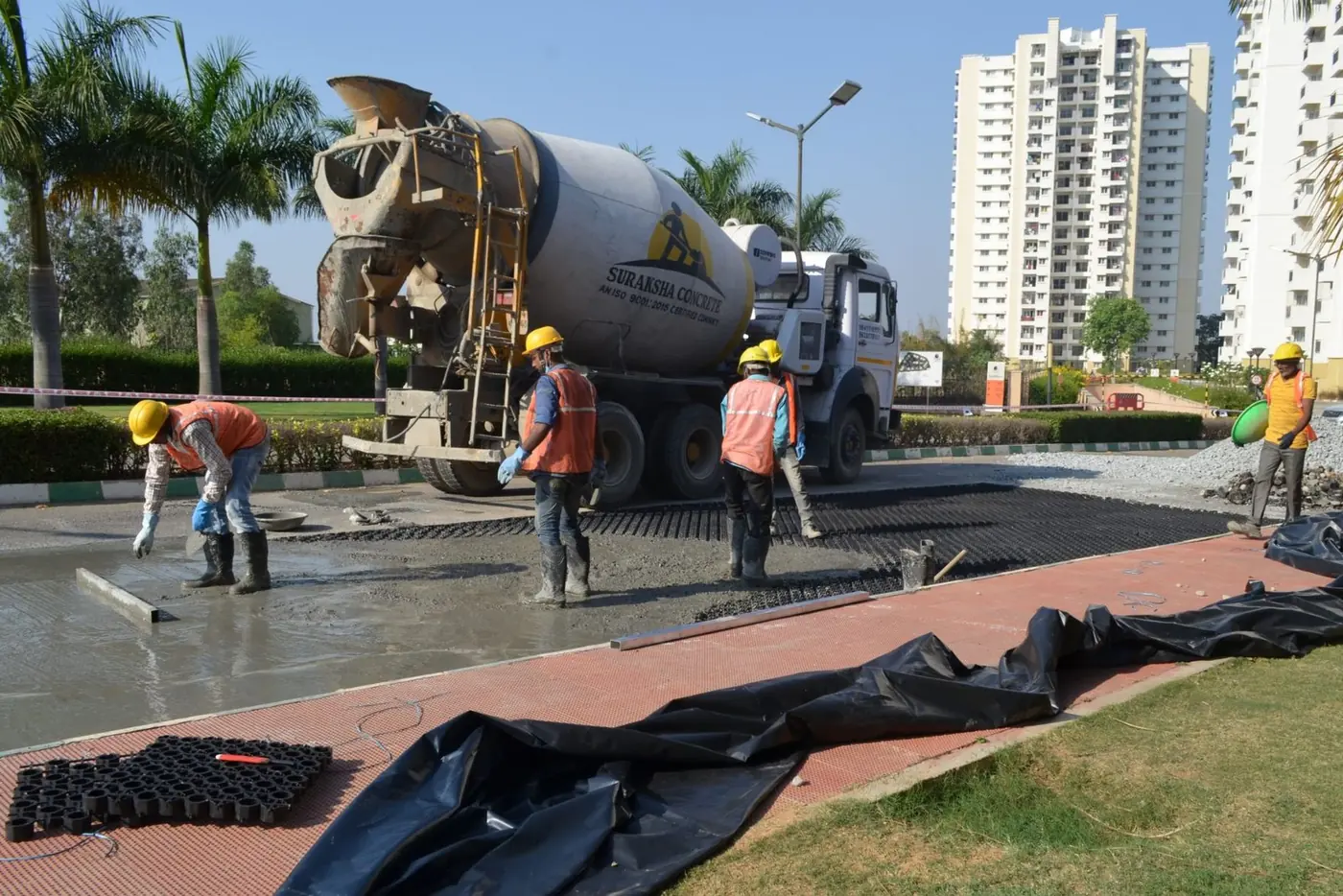

S4 Prestige Tranquility, Bengaluru
Residential · Road restoration

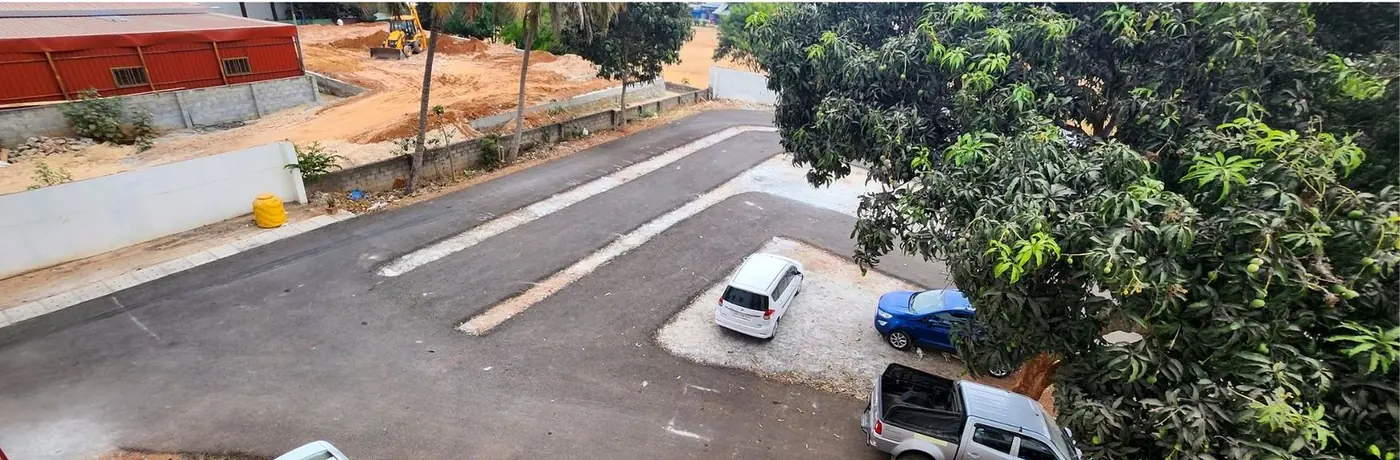

S5 Orxa Energies, Bengaluru
Electric mobility · Campus road under asphalt

S6 GE wind site
Wind energy · Crane pad and access

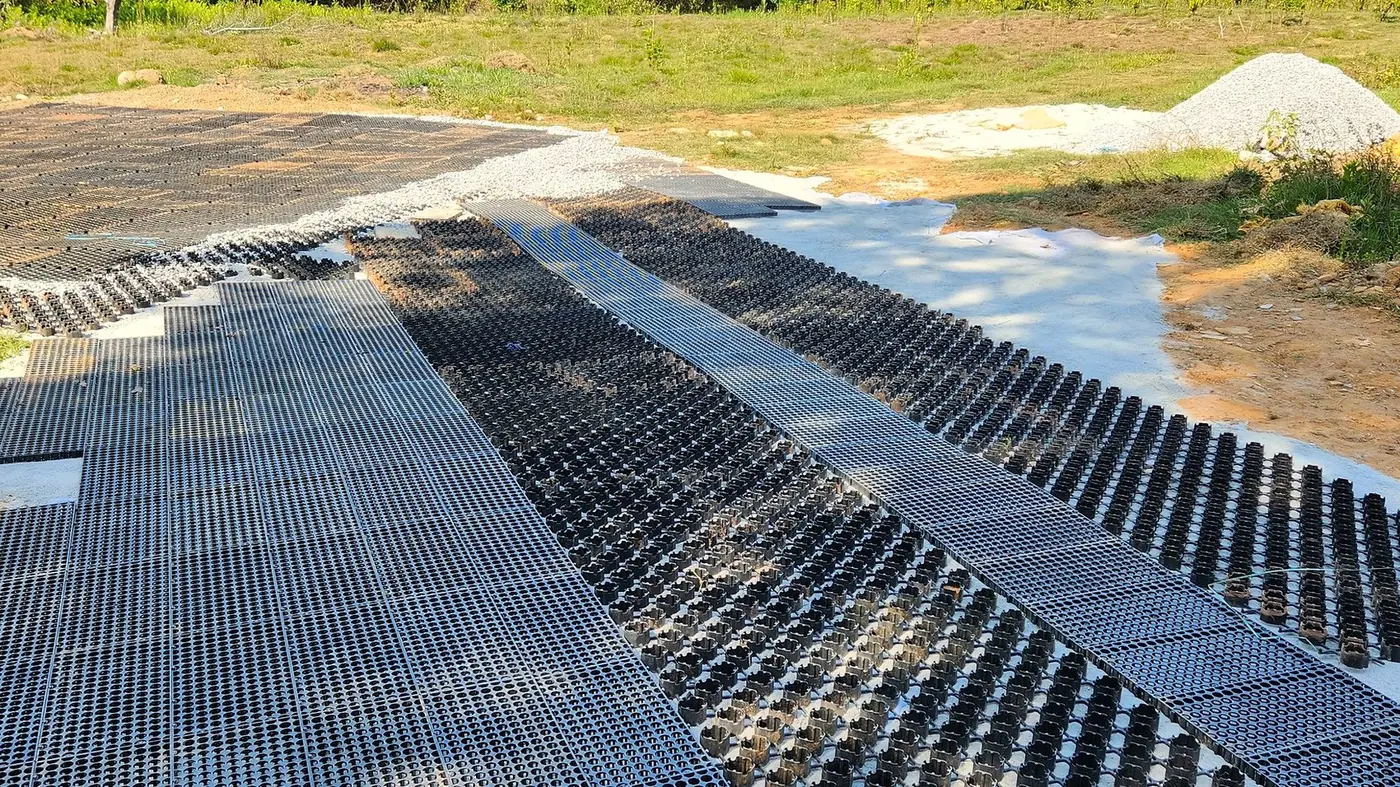

S6 Coffee estate road, Chikkamagaluru
Agriculture · Removable harvest road

S1 Cement-treated gravel

Project	Location	Client	Industry	Use case	Saving per m², indicative*
Cold-storage truck yard 2025	Mumbai, Maharashtra	RINAC India	Cold-chain logistics	Truck yard for reefer trucks on OC-LW 40 with 6% cement-treated gravel, built in a shutdown window	₹93–130/sq ft (₹1,000–1,400/m²) vs an IRC:58 concrete yard

S2 Stone chip, gravel, pebble

Project	Location	Client	Industry	Use case	Saving per m², indicative*
Access road on saline flats 2025	Rann of Kutch, Gujarat	Reliance Industries	Petrochemicals and energy	Access road on saline, low-CBR ground; opened the same day	₹9–37/sq ft (₹100–400/m²) vs a bituminous road, plus no surface-drain scope on the permeable area
Plant entrance road 2024	Bharuch, Gujarat	Toyo Engineering	Engineering and construction	Kerbed entrance road with stone-chip infill	₹9–37/sq ft (₹100–400/m²) vs a bituminous road, plus no surface-drain scope on the permeable area
Campus road, paths and parking	Bengaluru, Karnataka	Garden City University	Education campus	30 mm grid (GP-30) with gravel for the campus road, paths and parking	₹9–28/sq ft (₹100–300/m²) vs paver blocks, plus the storm-drain scope avoided
Gravel road in hilly, steep terrain	Nasik, Maharashtra	Laukik Tated	Industrial contractor	Gravel road on steep, hilly ground with heavy rain in the monsoon	₹9–37/sq ft (₹100–400/m²) vs a bituminous road, plus no surface-drain scope on the permeable area
Temporary site access	Pune, Maharashtra	SJ Contracts	Construction contractor	Temporary access road that stays after the job	Concrete or WBM pad avoided; mats reused
Gated-layout driveway and verges	Gulbarga (Kalaburagi), Karnataka	Gulbarga Gated Layout	Residential layout	Honeycomb-finish concrete driveway with OC-LW gravel and soil verges on both sides	₹33–84/sq ft (₹350–900/m²) on the driveway vs PQC; verges at ₹1,300–1,700 all-in

S3 Grass and soil

Project	Location	Client	Industry	Use case	Saving per m², indicative*
Grass roads in a plotted layout 2021	Bengaluru, Karnataka	Svamitva Floresta	Residential township	Grass-top roads and paths through a landscaped plot	₹9–37/sq ft (₹100–400/m²) vs paver blocks with drains, plus green-cover credit
Soil-finish paths	—	Punarnava	Residential	Soil-filled OC-LW earth paths	₹9–37/sq ft (₹100–400/m²) vs paver blocks with drains, plus green-cover credit
Green parking and paths	—	Aishwaryam	Residential	Grass and soil surfaces for parking and paths	₹9–37/sq ft (₹100–400/m²) vs paver blocks with drains, plus green-cover credit
Green parking	—	Maruti	Automotive	Grass-paver parking	₹9–37/sq ft (₹100–400/m²) vs paver blocks with drains, plus green-cover credit
Amphitheatre and event lawn 2022	Bengaluru, Karnataka	Waters India	Life-science instruments campus	Grass pavers and honeycomb concrete for an amphitheatre and paths	₹28–56/sq ft (₹300–600/m²) vs concrete pavers
Gated-layout driveway and verges	Gulbarga (Kalaburagi), Karnataka	Gulbarga Gated Layout	Residential layout	Honeycomb-finish concrete driveway with OC-LW gravel and soil verges on both sides	₹33–84/sq ft (₹350–900/m²) on the driveway vs PQC; verges at ₹1,300–1,700 all-in

S4 Honeycomb-finish concrete

Project	Location	Client	Industry	Use case	Saving per m², indicative*
Plant roads 2023	Kosamba, Gujarat	PGP Glass	Glass manufacturing	Honeycomb-finish plant roads under 40-tonne trucks	₹33–84/sq ft (₹350–900/m²) vs an IRC:58 concrete road (12–28%)
Plant roads	Jambusar, Gujarat	PGP Glass	Glass manufacturing	Honeycomb-finish plant roads, second site	₹33–84/sq ft (₹350–900/m²) vs an IRC:58 concrete road (12–28%)
National Park, Guindy	Chennai, Tamil Nadu	Aditya Birla Group	Manufacturing	Honeycomb-finish road	₹33–84/sq ft (₹350–900/m²) vs an IRC:58 concrete road (12–28%)
Plant road	—	Tata Advanced Systems	Aerospace and defence manufacturing	Honeycomb-finish plant road	₹33–84/sq ft (₹350–900/m²) vs an IRC:58 concrete road (12–28%)
Industrial campus road 2026	Vikhroli, Mumbai	Godrej	Industrial campus	Honeycomb-finish road	₹33–84/sq ft (₹350–900/m²) vs an IRC:58 concrete road (12–28%)
Plant road	—	International Tube	Tube manufacturing	Honeycomb-finish plant road	₹33–84/sq ft (₹350–900/m²) vs an IRC:58 concrete road (12–28%)
Plant road	—	Prakash Technoplast	Plastics manufacturing	Honeycomb-finish plant road	₹33–84/sq ft (₹350–900/m²) vs an IRC:58 concrete road (12–28%)
Service corridor and parking 2023	Hyderabad, Telangana	GMR Hyderabad International Airport	Airport	Honeycomb-finish service corridor and parking at an operating airport	₹33–84/sq ft (₹350–900/m²) vs a PQC parking slab
Township roads 2023	Devanahalli, Karnataka	Nest Ira	Residential township	Honeycomb-finish roads through a wooded plot, built end to end	₹33–84/sq ft (₹350–900/m²) vs an IRC:58 concrete road; no saw-cut joints to maintain
Township roads	Devanahalli, Karnataka	Brigade Orchards	Residential township	Honeycomb-finish internal roads	₹33–84/sq ft (₹350–900/m²) vs an IRC:58 concrete road; no saw-cut joints to maintain
Road restoration 2021	Bengaluru, Karnataka	Prestige Tranquil	Residential	Concrete hexagon finish over a broken asphalt road	₹33–84/sq ft (₹350–900/m²) vs an IRC:58 concrete road
IT-park road	Bengaluru, Karnataka	RMZ Ecoworld (Arliga)	IT park	Honeycomb-finish campus road	₹33–84/sq ft (₹350–900/m²) vs an IRC:58 concrete road; no saw-cut joints to maintain
Campus road and parking	Bengaluru, Karnataka	Divyasree	Real estate	Honeycomb-finish road and parking	₹33–84/sq ft (₹350–900/m²) vs a PQC parking slab
Driveway and parking	—	Aqua Group	Real estate	Honeycomb-finish driveway and parking	₹33–84/sq ft (₹350–900/m²) vs a PQC parking slab
Dealership yard	Calicut, Kerala	Hyundai	Automotive dealership	Honeycomb-finish vehicle yard	₹33–84/sq ft (₹350–900/m²) vs a PQC parking slab
Gated-layout driveway and verges	Gulbarga (Kalaburagi), Karnataka	Gulbarga Gated Layout	Residential layout	Honeycomb-finish concrete driveway with OC-LW gravel and soil verges on both sides	₹33–84/sq ft (₹350–900/m²) on the driveway vs PQC; verges at ₹1,300–1,700 all-in

S5 Grid at the GSB/WMM interface, asphalt on top

Project	Location	Client	Industry	Use case	Saving per m², indicative*
Campus road under asphalt 2022	Bengaluru, Karnataka	Orxa Energies	Electric mobility	OC-HD 40 at the WMM/GSB interface as a rut-resistance layer under the campus asphalt road	Up to ₹23/sq ft (₹250/m²) at parity rates, 14% less material

S6 Temporary roads and surfaces

Project	Location	Client	Industry	Use case	Saving per m², indicative*
Crane pad and access	Wind site	GE	Wind energy	Top-covered mats under a crane; laid and lifted in a day	Concrete or WBM pad avoided; mats reused
Harvest access road	Chikkamagaluru, Karnataka	Organic coffee estate	Agriculture	Removable road for tractors, trucks and workers through the monsoon	Dirt track made usable year-round; panels reused

*Against the conventional section for that use case (concrete, bituminous or paver blocks with drains), from our cost sheets and the design engine at Bengaluru rates; your proposal carries the figure for your own section.
